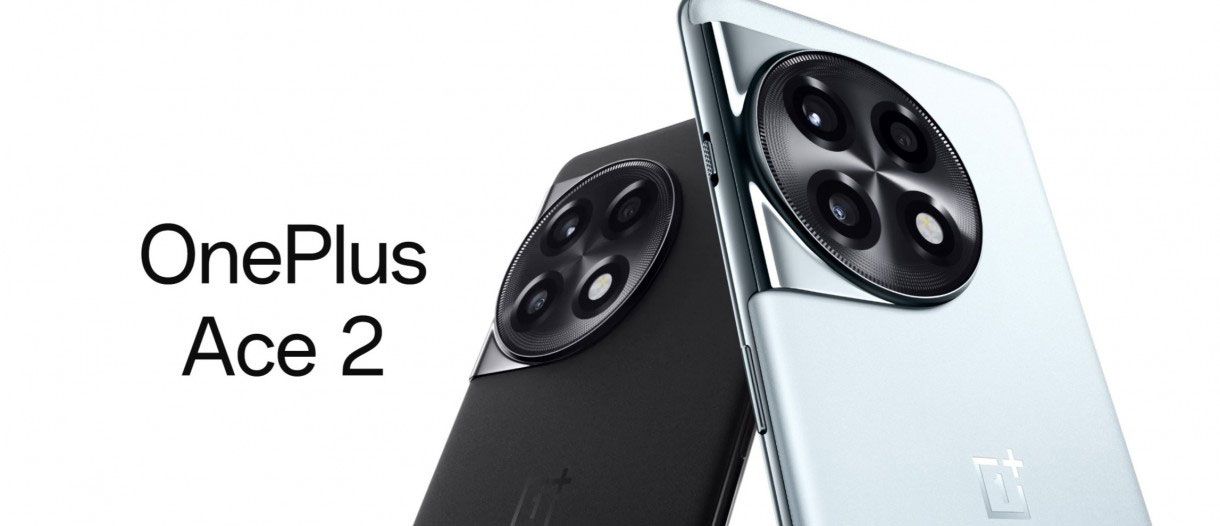

OnePlus Ace 2 5G

OnePlus Ace 2 5G – Complete Specifications & Features

1. Design & Build

• Dimensions: 163.4 x 74.3 x 8.7 mm | Weight: 204g

• Materials:

  • Gorilla Glass 5 (front) + 3D curved matte glass back

  • Plastic frame (cost-saving measure)

• IP Rating: None (no official dust/water resistance)

• Colors:

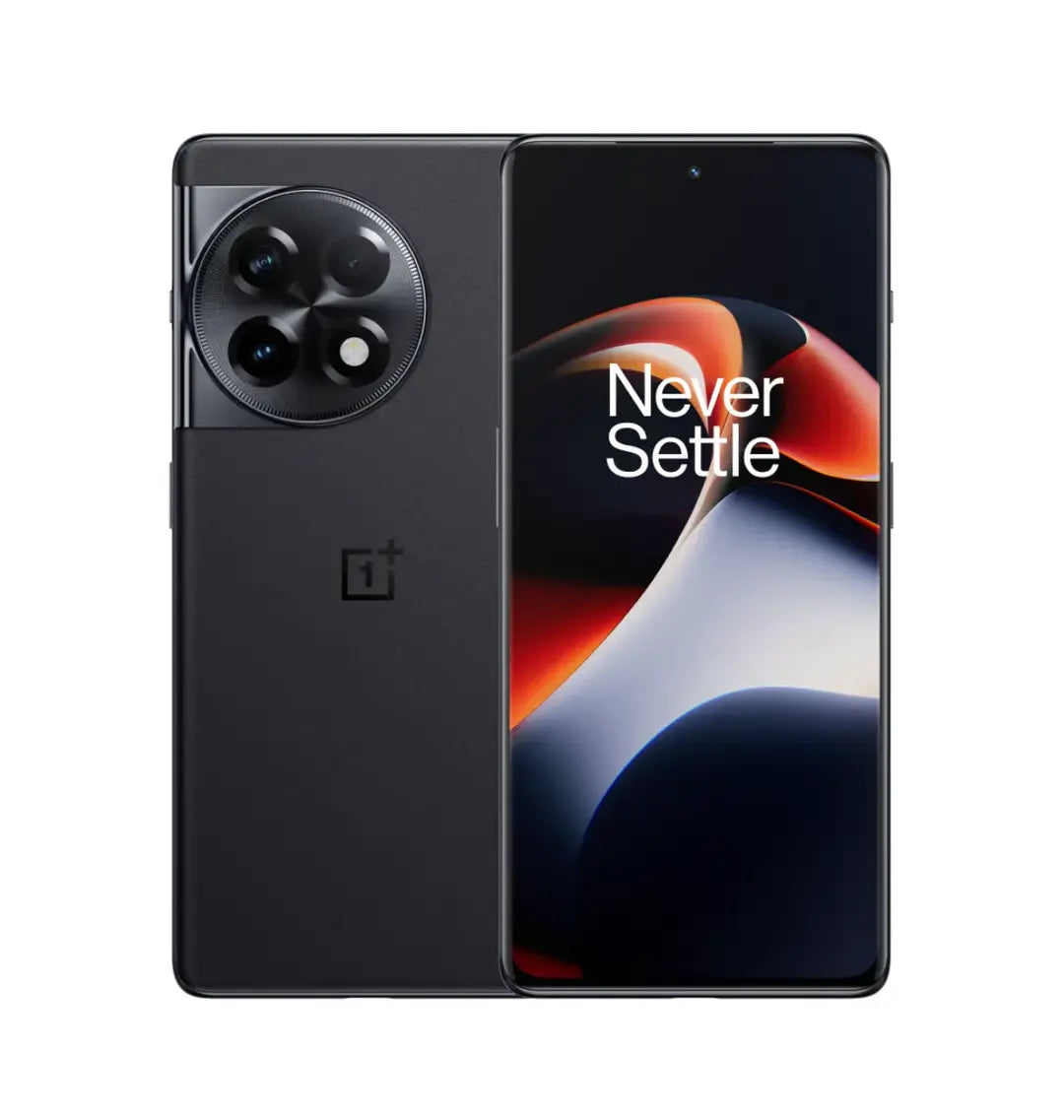

  • Vast Black (matte sandstone texture)

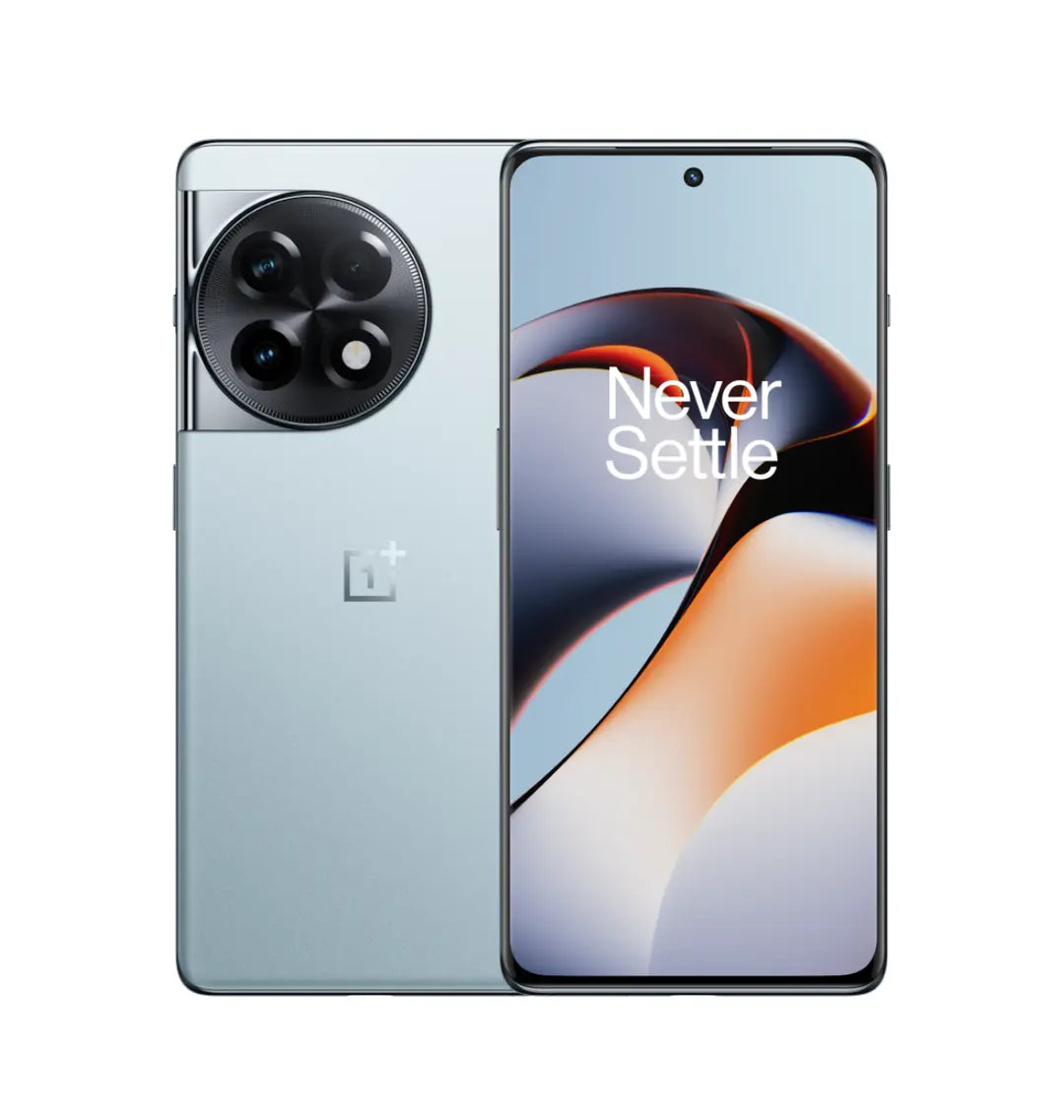

  • Glacier Blue (glossy finish)

• Signature Features:

  • Alert Slider (physical mute switch)

  • In-display fingerprint sensor

2. Display

• Type: 6.74-inch 1.5K AMOLED

• Resolution: 2772 × 1240 pixels (~450 PPI)

• Refresh Rate: 120Hz adaptive (1Hz-120Hz LTPO 3.0)

• Brightness:

  • 1100 nits (peak HDR) | 500 nits (typical)

• Features:

  • HDR10+, 10-bit color

  • 1440Hz PWM dimming (reduced eye strain)

  • 100% DCI-P3 coverage

3. Performance

• Chipset: Qualcomm Snapdragon 8+ Gen 1 (4nm, Octa-core)

  • CPU: 1x Cortex-X2 (3.2GHz) + 3x Cortex-A710 (2.8GHz) + 4x Cortex-A510 (2.0GHz)

  • GPU: Adreno 730 (Vulkan 1.1, Ray Tracing support)

• RAM & Storage:

  • 12GB/16GB LPDDR5X RAM

  • 256GB/512GB UFS 3.1 storage (no microSD slot)

• Cooling: HyperBoost Gaming Engine + 5177mm² VC cooling

4. Camera System

• Triple Rear Setup:

  1. 50MP Sony IMX890 (Primary)

     • f/1.8 aperture | OIS | 1/1.56" sensor

     • Supports 4K@60fps video

  2. 8MP Sony IMX355 (Ultra-wide)

     • 120° FOV | f/2.2

  3. 2MP Macro (f/2.4)

• Front Camera: 16MP (f/2.4)

• Video Features:

  • Nightscape Video | Portrait Mode | Pro Mode

5. Battery & Charging

• Capacity: 5000mAh (dual-cell)

• Wired Charging: 100W SUPERVOOC (1-100% in 25 mins)

• Wireless Charging: Not supported

• Battery Life:

  • 7–8 hours SOT (heavy use)

  • 1.5 days (moderate use)

6. Software & UI

• OS: ColorOS 13 (China) / OxygenOS 13 (Global as 11R)

• Android Version: Android 13 (upgradable to Android 14)

• Update Policy: 3 OS updates + 4 years security patches

7. Connectivity

• 5G: Dual-mode NSA/SA

• Wi-Fi 6 | Bluetooth 5.3 | NFC

• USB Type-C 2.0 (no video output)

8. Audio & Extras

• Stereo speakers (Dolby Atmos)

• No 3.5mm headphone jack

• X-axis linear motor (precise haptics)

Key Selling Points

✅ Flagship-tier Snapdragon 8+ Gen 1 performance
✅ 1.5K 120Hz AMOLED display (LTPO for efficiency)
✅ 100W fast charging (full charge in 25 mins)
✅ Premium design (glass back, curved display)

Limitations

❌ No IP rating (not water-resistant)
❌ No wireless charging
❌ Ultra-wide camera is mediocre (8MP)

Global Variant: OnePlus 11R 5G

The Ace 2 was rebranded as the OnePlus 11R for global markets (e.g., India) with minor tweaks:

• OxygenOS instead of ColorOS

• Slightly different design

Final Verdict

The OnePlus Ace 2 5G is a performance beast for its price, offering:
✔ Near-flagship chipset
✔ Fast charging & great battery life
✔ Smooth 120Hz display
✔ Solid main camera (with OIS)

Ideal for gamers and power users who prioritize speed over premium extras like wireless charging.
